Software platform features
Based on front-end monitoring equipment and video encoder, SHR-FFPS V2 forest fire alarm video monitoring and early warning management system adopts C / S architecture to transmit data and information to each service area through each transmission link in the interactive area Kind of server. The client in the business area manages and processes the monitoring business. The picture below shows the system architecture diagram.
Details
• Central Management Server •
The central management server can manage the front-end equipment. complete the authentication of the use’s
authority. the distribution configuration of the equipment. the configuration management of other servers and the management of the log, The server authenticate through the account password, In the system the administrator can set different access for different accounts of the login to protect the system information and operational safety.
Video storage management server
The video storage server is responsible for storing the video files of the front -end equipment,including plannedvideo and alarm recording. In the video surveillance and early warning management system can be real-timesearched, video-query can be checked in accordance with the video reasons, video time, front-end camerapoint, alarm events and other conditions, to facilitate customers to watch the saved video and find the causeof the incident
Streaming Media Transponding Server
The streaming media transponding server is responsible for transponding video and audio data from the front-end devices to different video surveillance and early warning management systems to effectively reduce the bandwidth requirements of the front -end equipment and isolate the front-end equipment from the video surveillance and early warning management system to ensure the safety of the front-end equipment and robustness. Especially in the network transmission bandwidth is not ideal, if more than one customer connection, will cause the video transmission delay, not smooth and other phenomena.
- Linkage Alarm Server -
When fire happens in Monitoring area, according to the settled plan to start the alarm linkage. In the monitoring center, linking sound and light alarm to remind the duty offier attention to view, promptly deal with dangerous situations, and the alarm information generated by SMS or MMS sent to the designated mobile phone number.
- Intelligent Power Supply and Fault Management Server
Theintelligent power supply and fault management server regularly inspects the power supply equipment of the frontendmonitoring base station, real-time displaying equipment Work status; When the equipment fails, the networktimely inform the user ang give out the solution
Client

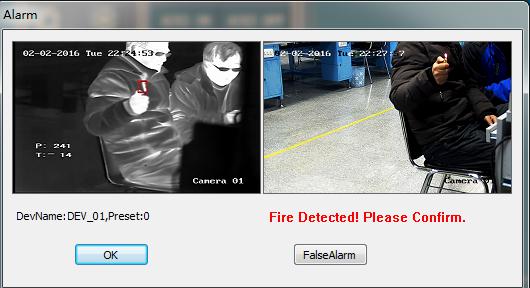

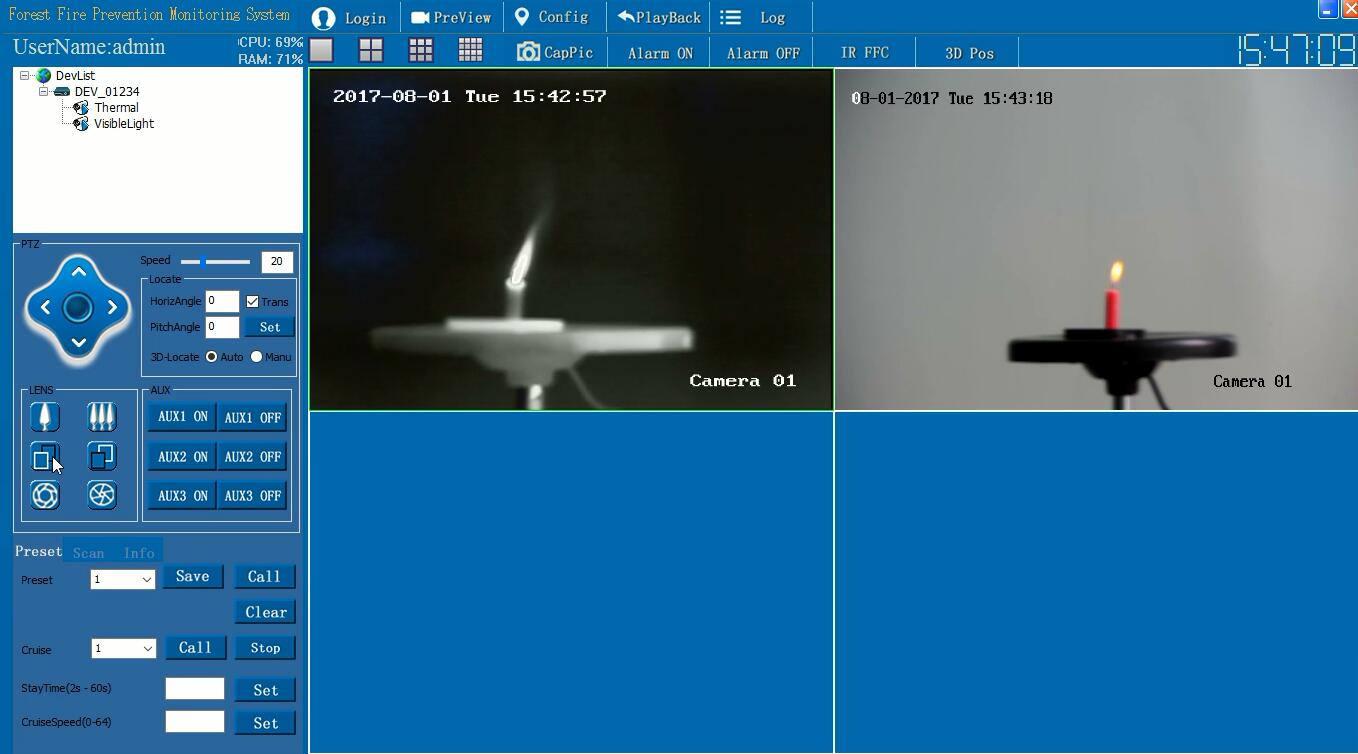

The system realizes the real-time video monitoring on the monitoring area and can display the front-end real-time scene on the display terminal of the monitoring center. Background management using C / S architecture, a computer as a monitoring center server, multiple client software. The associated screen of alarm events shows that supervisors can easily monitor the entire system.
