Level of protection IP66 Monitor Distance
|
Visible light
|
10000m
|
|
Thermal camera
|
object
|
fire (1m×1m)
|
fire (3m×3m)
|
|
warning distance
|
4400m
|
10800m
|
|
Alarm Detection
|
Alarm condition
|
The high temperature region occupies 2 x 2 pixels
|
|
Alarm threshold value
|
1~255
|
|
Target scope
|
2×2~ 640×512 pixels
|
|
Alarm object
|
can set 1-16 alarm objects，Automatically displays hypertemperature targets
|
|
Alarm mode
|
Video overlay alarm box / switch, alarm intuitive and easy to read
|
|
Information algorithm
|
Optimized front-end fast processing algorithm, based on each frame analysis, alarm response 0.1S, no delay, no information loss
|
|
HD Camera
|
Focal length
|
12.5~750mm
|
|
F value
|
F3.8~F22.C
|
|
FOV
|
0.6°~35°
|
|
Automatic diaphragm
|
DC drive
|
|
Penetrating fog
|
support
|
|
Auto focus
|
support
|
|
Camera
|
Sensor type
|
1/1.8''Progressive Scan CMOS
|
|
Color mode
|
Integrated ICR dual filter day and night switching, day and night dual mode parameter settings
|
|
Shutter speed
|
Auto/manual
|
|
Camera control
|
AGC, AWB Supports manual and automatic round-the-clock mode conversion
|
|
Penetrating fog
|
turn on/off (optinal)
|
|
Wide dynamic
|
turn on/off (optinal)
|
|
Backlight compensation
|
turn on/off and region is optinal
|
|
Area-of-interest
|
turn on/off and region is optinal
|
|
Post-focus fine tuning
|
Support, remote debugging
|
|
Digital Noise Reduction
|
3D digital noise reduction
|
|
Coded format
|
H.265/H.264/MJPEG
|
|
Video resolution
|
1080p，Support three stream
|
|
Video bitrate
|
32Kbps~16Mbps
|
|
Frame rate
|
50Hz: 50fps (1920×1080，1280×960，1280×720);
|
|
25fps (1920×1080，1280×960，1280×720);
|
|
60Hz: 60fps (1920×1080，1280×960，1280×720);
|
|
30fps (1920×1080，1280×960，1280×720);
|
|
Subtitle overlay
|
station logo, date, time
|
|
Image adjustment
|
brightness, contrast, saturability etc.
|
|
Supporting protocol
|
TCP/IP/ICMP/HTTP/HTTPS/FTP/DHCP/DNS/DDNS/
|
|
RTP/RTSP/RTCP/PPPoE/NTP/UPnP/SMTP/SNMP/
|
|
IGMP/802.1X/QoS/IPv6/Bonjour
|
|
Feature
|
Support heartbeat, video cover, password protection, mirror function
|
|
Infrared Lens
|
Focal length
|
30~150mm，5x optical zoom
|
|
FOV
|
4.2°×3.3°~20.6°×16.5°
|
|
Camera control
|
Electric zoom, electric focus, auto focus
|
|
Spatial resolution
|
0.11~0.57mrad
|
|
Detector
|
Detector type
|
uncooled microbolometer focal plane array（VOx）
|
|
Effective pixel
|
640×512
|
|
Spectrum range
|
8～14μm
|
|
NETD
|
≤[email protected],300k
|
|
Frame frequency
|
25Hz
|
|
Nonuniformity correction
|
Auto/manual/background correction
|
|
Image precess
|
DDE
|
|
Video output
|
PAL
|
|

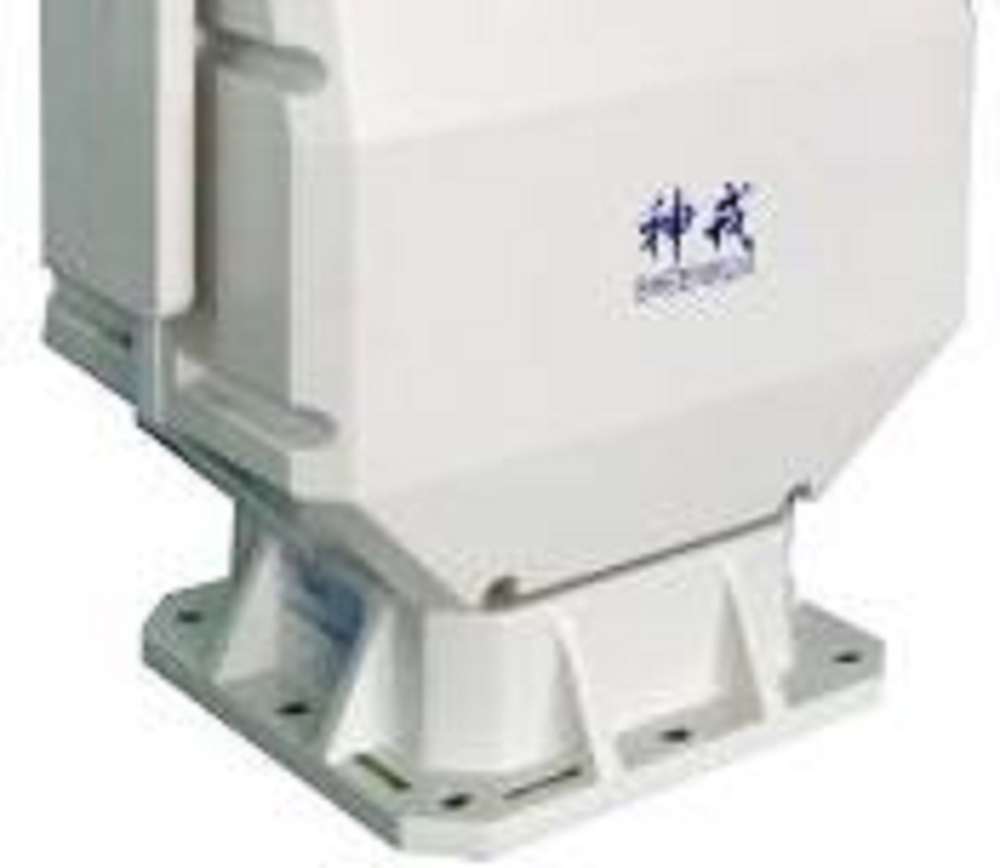

Photoelectric turntable
|
Horizontal angle
|
Horizontal 360 °, infinite continuous rotation
|
|
Pitch angle
|
-45°~+45°
|
|
Horizontal speed
|
0.01°~80°/s
|
|
Pitch speed
|
0.01°~60°/s
|
|
Preset position
|
2048，Support lens zoom, focus preset position and function preset position
|
|
Preset accuracy
|
±0.05°
|
|
Auxiliary switch
|
2 groups
|
|
Automatic cruise
|
2, each can be set to 64 cruise points
|
|
Automatic scanning
|
1 line scan, 1 apple peel scan
|
|
Protocol
|
Pelco-D、Pelco-P (optional)
|
|
protocol rate
|
2400/4800/9600/19200 bps (optional)
|
|
Anti-thunder
|
4000V，video signal 2000V
|
|
Interface
|
Power interface
|
DC30V
|
|
Network interface
|
1×10Base-T/100Base-TX，RJ45 interface
|
|
Video control interface
|
RS422，BNC video output
|
|
Environmental Indicators
|
Operation temp
|
-25℃~+55℃
|
|
Storage temp
|
-40℃~+65℃
|
|
International protection
|
IP66
|
|
Anti-salt spray
|
GB/T2423.17-2008
|
|
Power
|
Power supply
|
DC30V，AC90~305V DC30V/10A Wide waterproof power supply
|
|
Power consumption
|
≤180W
|
|
Physical Characteristics
|
Total Weight
|
≤80kg
|
|
size
|
500mm×500mm×795mm（L×W×H)
|
|
Install
|
Outdoor base installation
|
